Tight tolerances. Controlled geometry. Verified surface integrity.
Applied across complex components, demanding material conditions, and precision-critical applications where fit, alignment, and performance must be achieved and maintained.
Typical achievable tolerances (application dependent):
Diameter: ± 0.002 mm and above
Bore: ± 0.002 mm and above
Concentricity / Runout: ≤ 0.001 mm and above
Flatness / Parallelism: ± 0.003 mm and above
Surface finish: Ra 0.08 and above

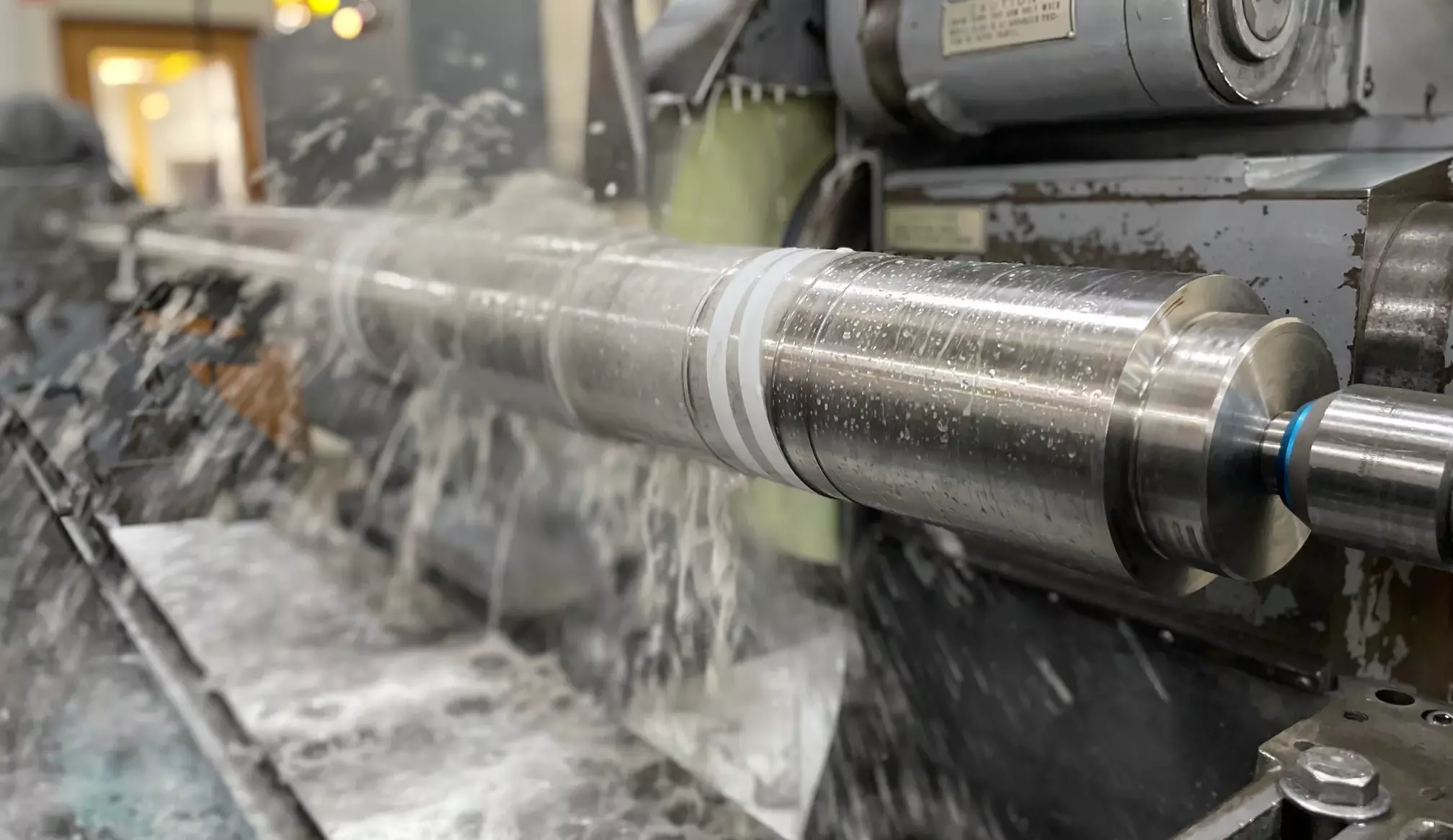

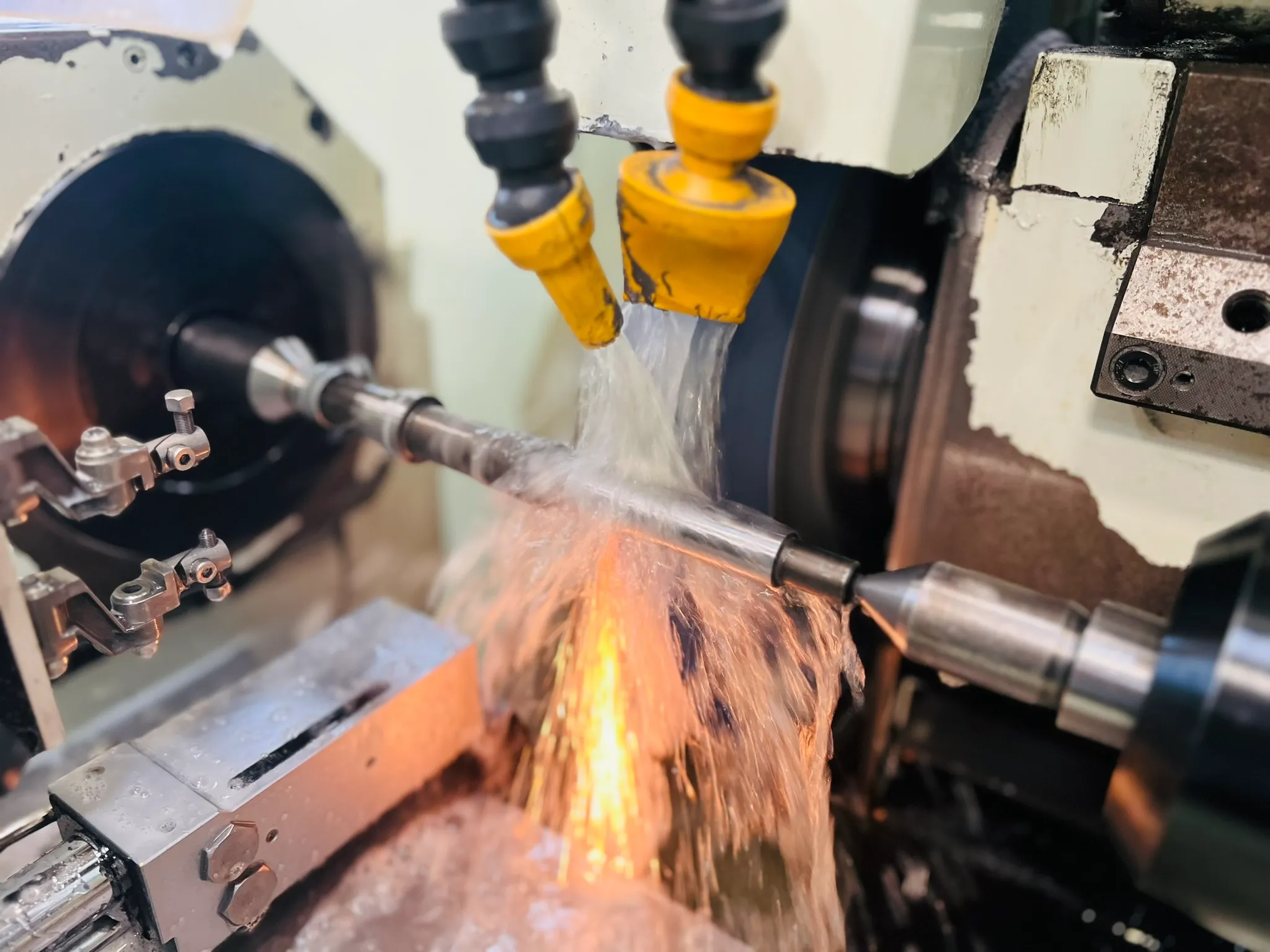

Cylindrical Grinding
Up to 590 mm diameter
Up to 2.7 m length
Surface Grinding
Up to 700 mm width
Up to 2.2 m length

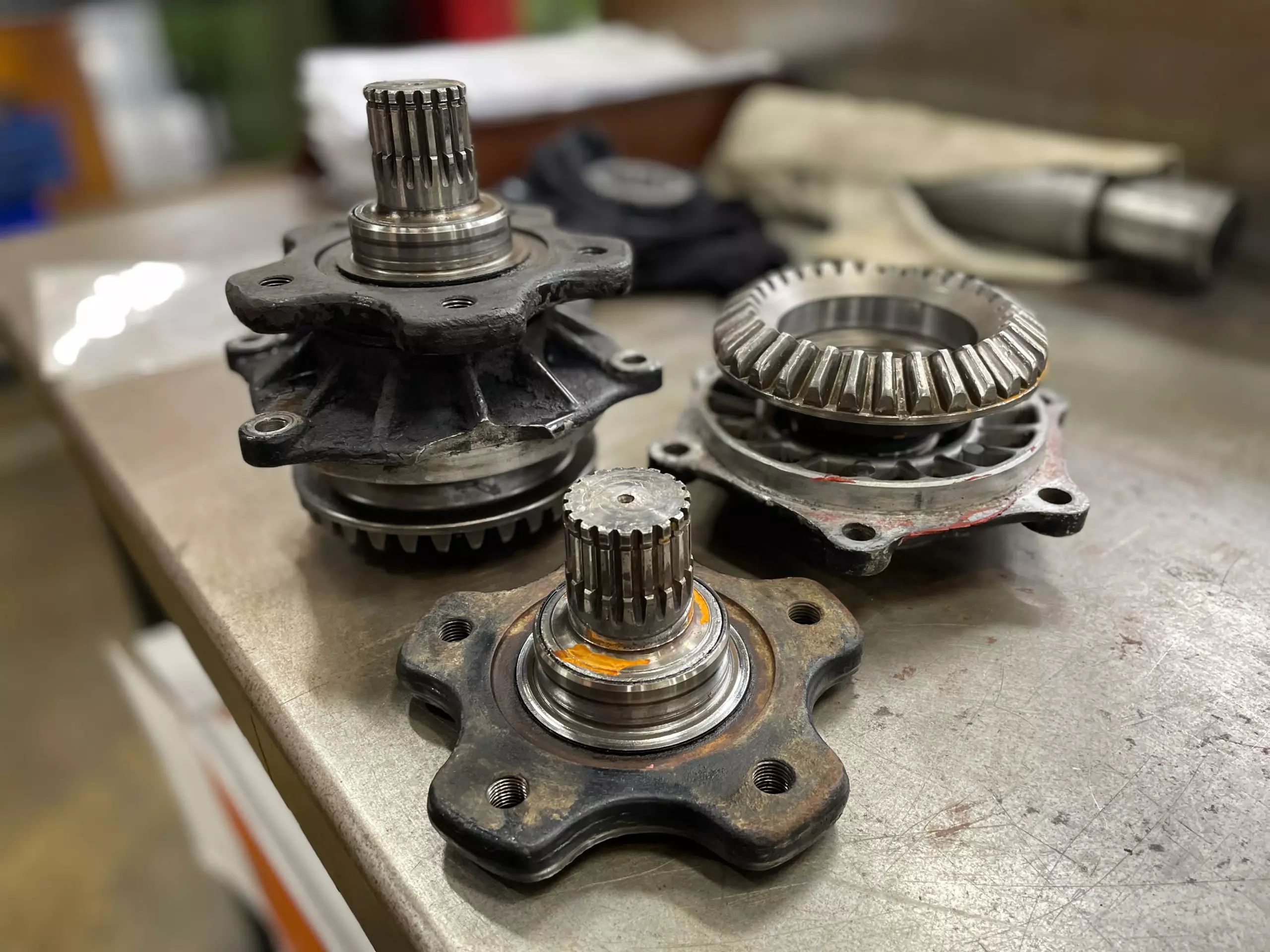

HMPG supports precision finishing and restoration of:
Where required, HMPG supports the manufacture and reconstruction of components prior to final grinding.
This enables complete component supply from manufacture or recovery through to final precision grinding where dimensional accuracy, geometry, and surface integrity must be achieved.
